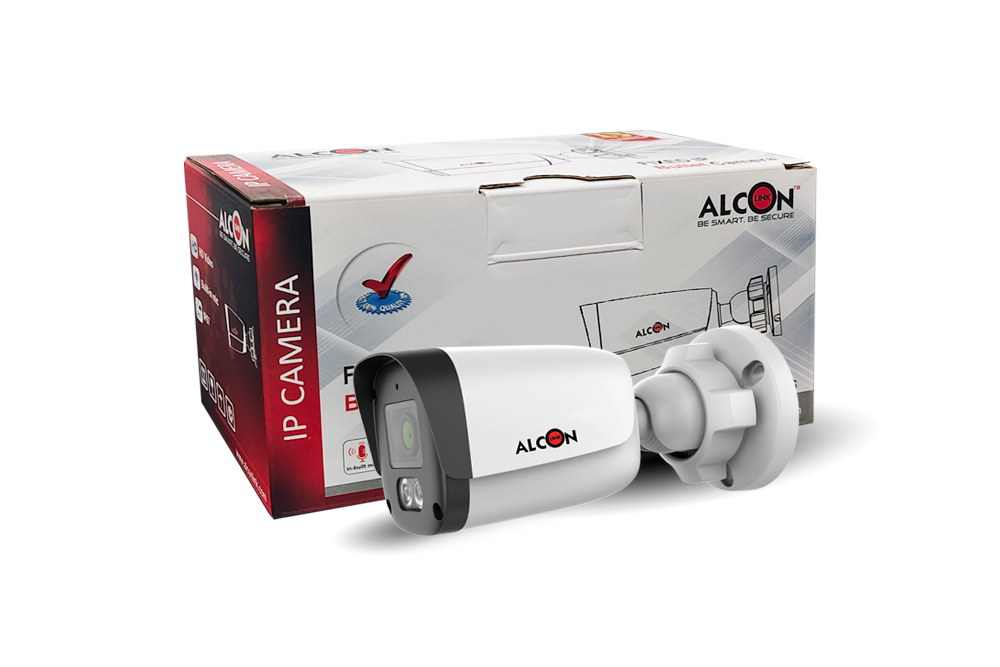

2MP 30M IR Bullet Camera
AL-5001-MPC-HD2LML.
Features
• 1920x1080@30fps
• In-built Mic
• H.265+/H.265/H.264
• Minillumination Color: 0.02Lux@F2.0
• Smart IR, IR Range: 30m
• POE & IP67
The Alcon AL-5001-MPC-HD2LML Fixed Lens IP Camera with IR Illuminator provides high resolution images for round-the-clock surveillance over IP networks.It supports up to S+265 compression formats and delivers excellent picture quality in Full-HD 1920x1080p@30fps resolutions. Furthermore, the IP67-rated housing protects against rain and dust and ensure stable operation under extreme weather conditions. IR-Cut filter and built-in IR illuminators support upto 50MTR IR distance.It supports Power-Over-Ethernet. It is an ideal solution for outdoor and indoor surveillance applications such as school,college, hospital,training center,restaurant, conference hall etc.
| Camera | AL-5001-MPC-HD2LML |
| Image Sensor | 1/2.9"CMOS |
| Min. Illumination | Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR |
| Shutter Time | 1s~1/100000s |
| Day&Night | IR-cut filter with auto switch (ICR) |
| Smart IR | Yes |
| WDR | DWDR |
| S/N | >37dB |
| Angle Adjustment | 0~360°(P); 0~80°(T); 0~360°(R) |
| Lens | |
| Lens Type | Fixed focal lens |
| Focal Length | 4mm |
| Lens Mount | M12 |
| Aperture Range | F2.0 |
| Aperture Type | Fixed |
| Field of View | 78.6°(H); 43.2°(V); 89.7°(D) |
| DORI Distance | Detect:57.1m Observe:22.6m Recognize:11.4m Identify:5.7m |
| Illuminator | |
| IR LEDs | 2 |
| IR Distance | Up to 30m |
| Wavelength | 850nm |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H |
| Video Bit Rate | 32k~4Mbps |
| Audio Compression | G.711A/G.711U |
| Audio Sampling Rate | 8kHz |
| Image | |
| Max. Resolution | 2MP,1920×1080@30fps |
| Main Stream | PAL:25fps(1920×1080, 1280×720, 704×576, 640×480) NTSC:30fps(1920×1080, 1280×720, 704×480, 640×480) |
| Sub Stream | PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:30fps(704×480, 704×240, 640×360, 352×240) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
| OSD | Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32/48*48 |
| Privacy Mask | 4 black static areas |
| Defog | Yes |
| Feature | |
| General Alarm | Motion Detection |
| Exceptions Alarm | IP Address Conflict |
| Network | |
| Protocols | HTTP; TCP/IP; UDP; ICMP; DHCP; DNS; NTP; IPv4; Telnet; Unicast; RTSP |
| System Compatibility | ONVIF(Profile S/T) ; SDK; CGI; Milestone; RTSP |
| Remote Connection | ≤2 |
| Client | Alcon Smart Surveillance |
| Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
| Interface | |
| Communication Interface | 1*RJ-45 (10/100 Base-T) |
| Built-in Mic | Yes |
| General | |
| Web Client Language | English |
| Operating Temperature | -30°C~60°C(-22°F~140°F) |
| Operating Humidity | ≤95%RH |
| Storage Temperature | -30°C~60°C(-22°F~140°F) |
| Storage Humidity | 10%~95%RH(non-condensing) |
| Power Supply | PoE:IEEE 802.3af,Max. 6W |
| Protection | Surge4000V; ESD6000V; IP67 |
| Boundary Dimensions | 164(L)73(W)73(H)mm |
| Package Dimensions | 180(L)90(W)95(H)mm |
| GrossWeight | 0.3kg |
| Certification | FCC, CE, BIS & RoHS |
AL-5001-MPC-HD2LML.pdf
