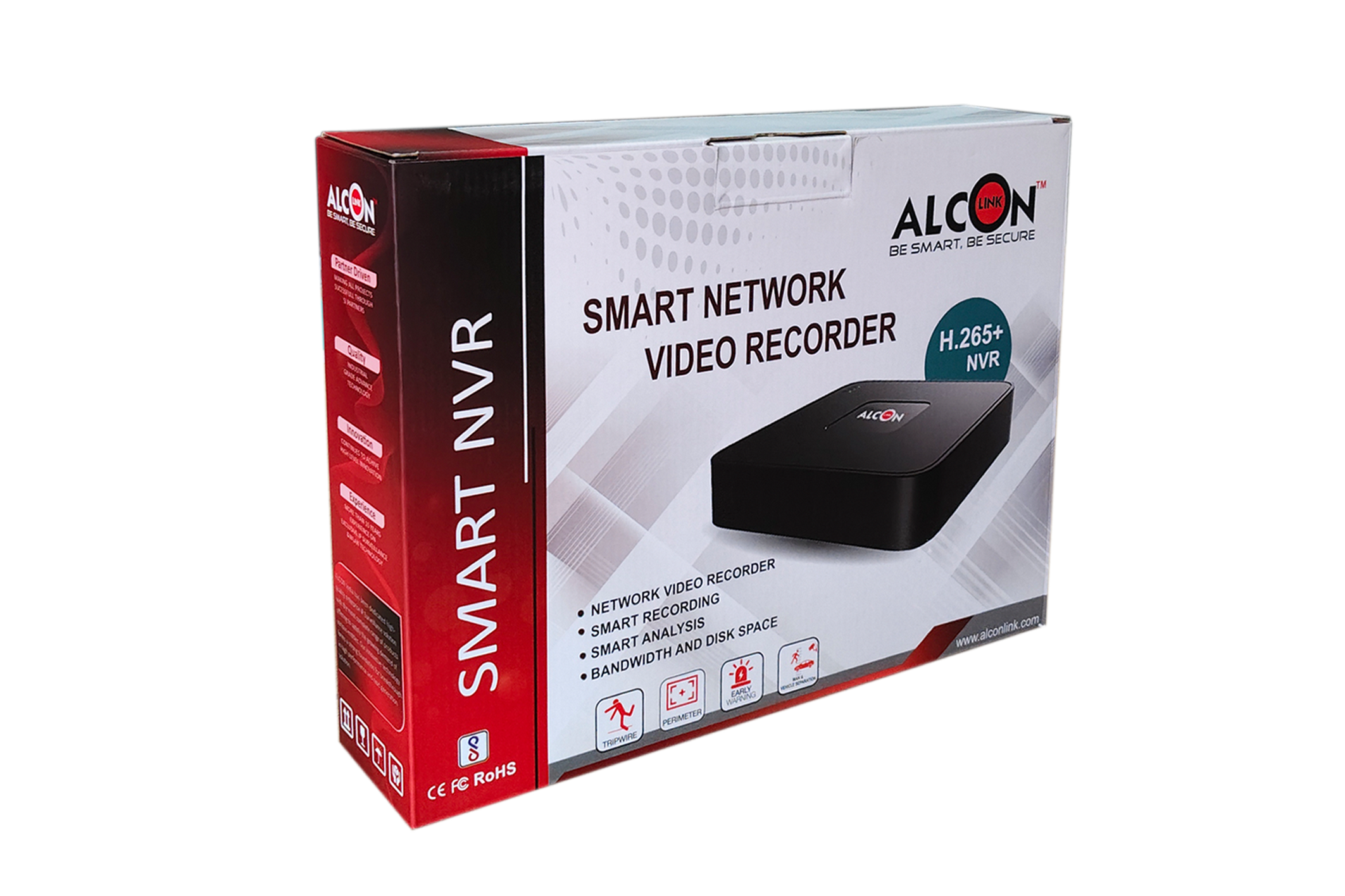

5CH 1 SATA SMART NVR
AL-NVR5005-1DP.
FEATURES
• Up to 5-channel input
• Up to 6MP Resolution Recording
• Bandwidth 100Mbps
• S+265/H.265/H.264 video formats
• 1 SATA interface, up to 8TB for
• VCA , Plug and play
• Audio & management of IP cameras
• Connectable to Onvif network cameras
• Support cloud upgrade
• HDMI & VGA simultaneous output
 copy.png)

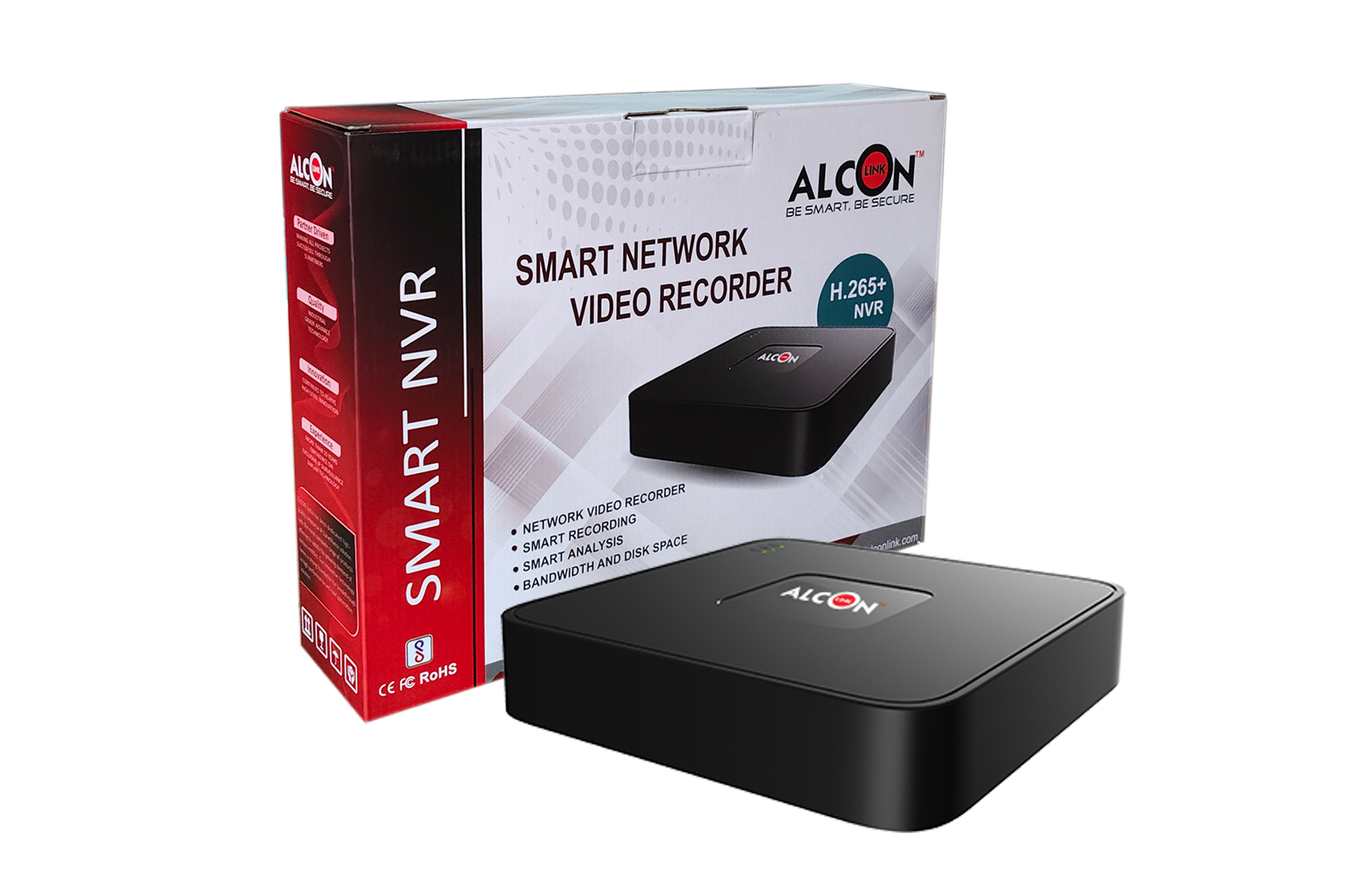

5CH 1SATA SMART NVR
The Alcon AL-NVR5005-1D NVR is for the Smarter generation. It is a Smart POE NVR which supports up to 05ch IP camera input and recording.It Supports Smart Recording, Smart Search and Smart Plug and Play. It Supports any 3rd party OEM IP camera with ONVIF compliance.The Alcon Premium Series NVR also supports intelligent video analytics like tripwire, perimeter, on duty detection, early warning and many other features.
| Video and Audio | AL-NVR5005-1DP |
| Access Channel | 5 |
| Incoming Bandwidth | 60Mbps |
| Outgoing Bandwidth | 40Mbps |
| Resolution | 6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Preview Decoding Capability | 6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×2, 3MP(30fps)×2, 1080P(30fps)×4, 720P(30fps)×5, 4CIF(30fps)×5 |
| Playback Decoding Capability | 6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×2, 1080P(30fps)×3, 720P(30fps)×4 |
| Third-party Camera Access | ONVIF; RTSP |
| HDMI Output | HDMI: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz), (4K)3840×2160(30Hz) |
| VGA Output | VGA: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz) |
| Multi-screen Display | Simultaneous Output: VGA: 1/2/3/4/5/6 HDMI: 1/2/3/4/5/6 |
| Compression | |
| Video | S+265; H.265; S+264; H.264 |
| Audio | G711A; G711U; ADPCM_DIV4 |
| Stream Type | Video; Video & Audio |
| Network | |
| Network Protocol | 802.1X; ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; HTTPS; ICMP; IGMP; IPv4; IPv6; Multicast; NTP; RTCP; RTP; RTSP; SRTP; SSH; TLSv1.2, TLSv1.3; TCP/IP; UDP; Unicast; UPnP |
| Mobile Phone Access | Android; iOS; P2P |
| System Compatibility | RTSP; CGI; SDK |
| Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
| Record Playback | |
| Multi-channel Playback | 4 |
| Record Mode | Manual Recording; Alarm Recording; Schedule Recording |
| Storage Method | Local HDD |
| Backup | USB storage device |
| Playback Function | Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Step/Digital Zoom |
| Alarm | |
| General Alarm | Motion Detection; Mask Alarm; Alarm Input(IPC) |
| Exceptions Alarm | Video Loss; IP Conflict; MAC Conflict; Network Disconnected; No Disk; Illegal Access; Disk group space alert; Disk Full; Disk R/W Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; Voltage Alarm(IPC); RTC Failure |
| Intelligent Analytics | |
| AI by Camera | Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Loiter; Running; Parking; Video Abnormal; Audio Abnormal; On Duty Detection; Crowd Detection; Smart Motion; Human/Vehicle Classification |
| VCA Search | Early-warning Search |
| Storage | |
| HDD Capacity | Up to 8 TB capacity for each HDD |
| Disk Group | 1 Disk Group |
| External Port | |
| USB | 2×USB2.0 |
| HDMI | 1×HDMI(supports up to 4K resolution output) |
| VGA | 1×VGA |
| Network Interface | 1×RJ-45, 10/100 Mbps self-adaptive Ethernet port |
| SATA | 1×SATA interface |
| General | |
| UI Language | English; Spanish; Italian; Turkish; French; Polish; Hebrew; German; Portuguese |
| Power Supply | DC12V 1.5A |
| Power Consumption | <10W(HDD not included, idling) |
| NetWeight | 0.4 kg |
| GrossWeight | 0.7 kg |
| Boundary Dimensions | 200(L)200(W)43(H)mm |
| Package Dimensions | 315(L)70(W)235(H)mm |
| Operating Temperature | -10°C~+55°C (+14°F~+131°F) |
| Operating Humidity | 10%~90%RH (non-condensing) |
| Storage Temperature | -20°C~+60°C (-4°F~+140°F) |
| Package Kit | Network Video Recorder; Screw Pack; Mouse; European Standard Power Adapter |
| Certification | CE, FCC,BIS & RoHS |
AL-NVR5005-1DP.pdf
