AL-PFS5006-4P-65.
Features
• 4*10/100Mbps PoE port,2*10/100Mbps Uplink port
• 250M Distance, Support IEEE802.3af/at
• Whole Power:65W(52V 1.25A)
• All port supported by MDI/MDIX auto flip and self negotiation
• Supply 4 10/100Mbps adaptive high speed forwarding data packet non-lost port
• Support IEEE802.3x flow control for Full-duplex mode and backpressure for
Half-duplex mode
• Each port max. power supply reached 15.4/ 30W

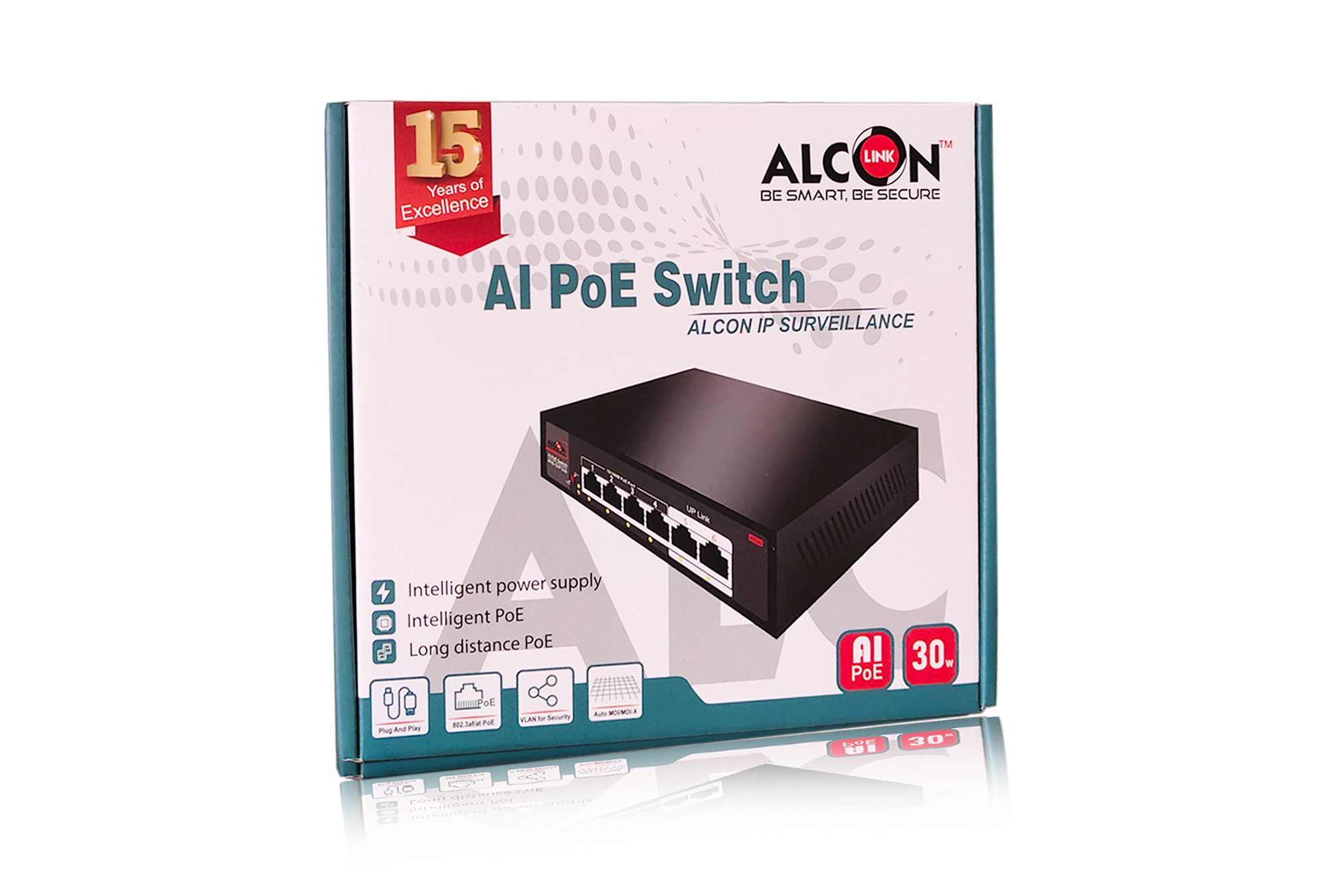

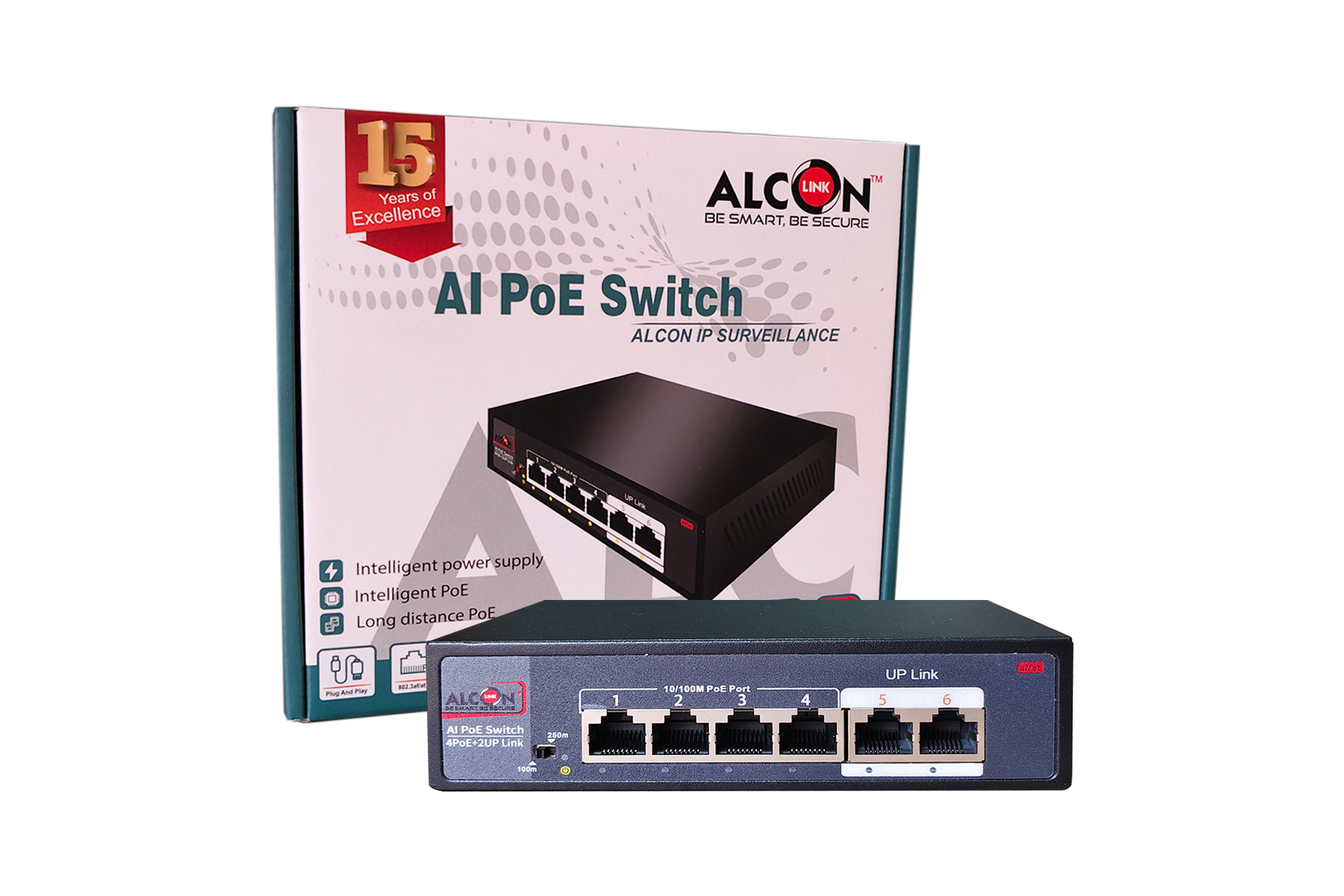

Alcon AL-PFS5006-4P-65 is a 4-port 10/100Mbps 802.3af/at Power over Ethernet + 2-port Fast Ethernet Switch, can be easily and quickly deployed for SMB PoE application environment by any users as it is compact in size and simple to install. The AL-PFS5006-4P-65 has a total PoE budget of 65 watts, which is an ideal solution to meeting the demand for sufficient PoE power for network applications. The four 802.3af/at PoE ports provide PoE power injector function which is able to drive one IEEE 802.3at compliant powered devices or four IEEE 802.3af compliant powered devices. The AL-PFS5006-4P-65 also provides a simple, cost-effective and nonblocking wire-speed performance. It comes with a Desktop-size metal housing, suitable for the desktop deployment of SMB network environment.
| Model | AL-PFS5006-4P-65 |
| POE Port | 1 to 4* 100Mbps support IEEE802.3AF/AT Standard and 2*100Mbps Uplink port |
| Output Power | 15.4W/30W IEEE802.3af/at |
| Power Pin | Both 1/2+, 3/6- and 4/5+7/8- |
| Whole Power | ≤65W (52V 1.25A) |
| POE Protocol | IEEE 802.3af/IEEE 802.3at |
| POE Type | End-span |
| Power Distance | ≤250m |
| Network Standard | IEEE 802.3, IEEE802.3u, 802.3x, 802.3af/at |
| Network Medium | 10/100BASE-TX:5 class and above non shielded twisted pair |
| Data Distance | ≤250m |
| Switch Capability | 1.6Gbps |
| Forwarding Mode | Store and forward |
| Forwarding Rate | 10BASE-T:14880PPS/port 100BASE-tx?14800pps/port |
| MAC Address | MAC address table 1K |
| Port Function | Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
| LED Indicator | LINK/ACT.100Mbps;POE Status Indicator; Power indicator;Extender |
| Working Environment | Working temperature?-10°-- 55°C |
| Weight | 1kg |
| Size | 200mm*120mm*40mm(L*W*H) |
| Warranty | 02 Years |
