80CH 16MP 8HDD INTELLIGENT RAID NVR
AL-NVR5080-8DRAID.
Features
• Up to 16M Resolution Recording
• Support 80-ch Intelligent Analysis Process

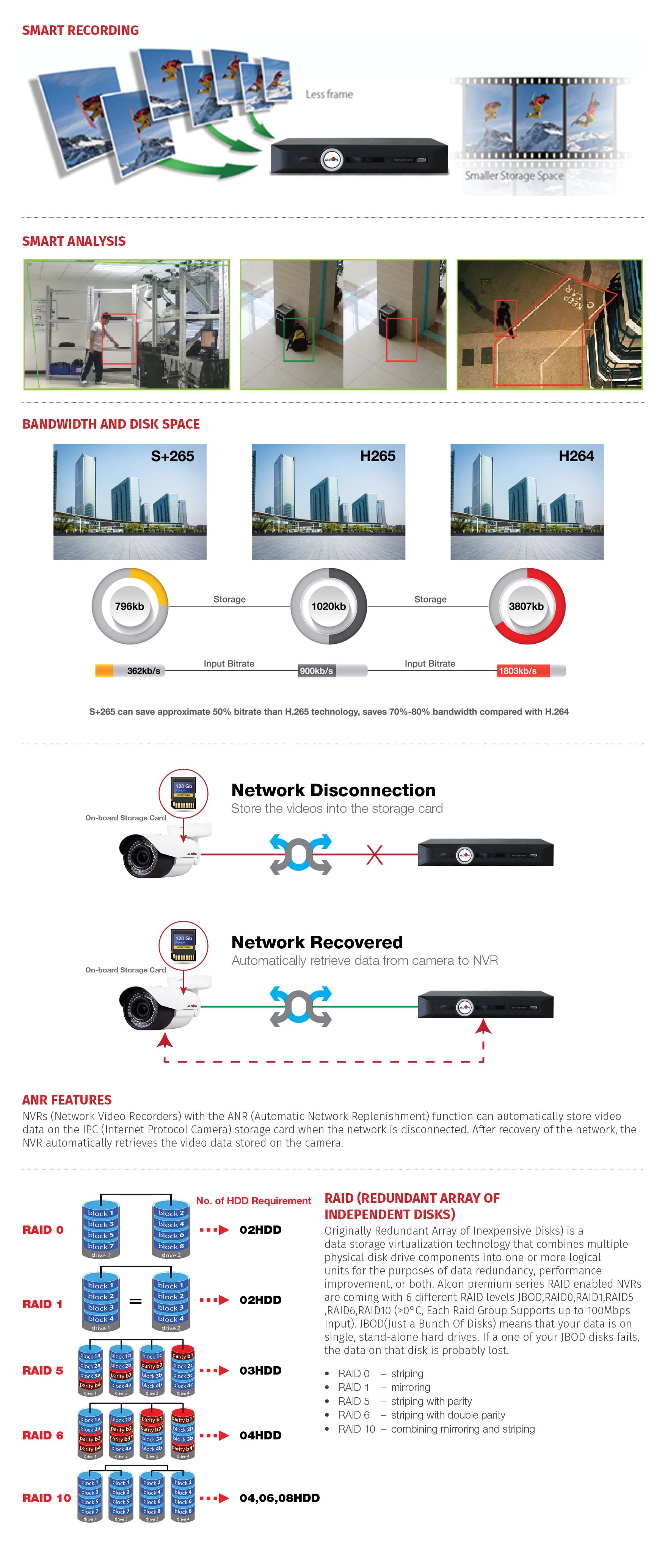

• Smart Search & Recording, Plug in Free
• Support ANR Function, N+M Hot Standby
• 2x HDMI, 2x VGA, Different Video Sourece
• Fish-eye Connection & Fish-eye Dewarping
• 8 SATA(Up to 24TB)
• Alarm I/O 16/4, Audio I/O 1/2, 3x USB
• Dual Gigabit Network Interface
• Onvif(Profile S) For Third party Network Cameras
• UI V3.0, Support free dragging of UI navigation bar
• Support JBOD, RAID0, RAID1, RAID5, RAID6, RAID10
• VCA: Camera VCA Function, Early Warning,
Face Detection, Pepole Counting, On Duty
Detection & Auto Tracking
Alcon 80Ch Inteligent Advanced RAID NVR is for the Next Generation tecnology for SMB & SMBPro Costumers. It is a Smart Enterprise NVR which supports up to 80Ch and 16MP IP camera input and recording. It Supports Smart Recording, Smart Search and Smart Plug and Play. It Supports any 3rd party OEM IP camera with ONVIF compliance. The Alcon Premium Series NVR also supports intelligent video analytics like Face Detection, People Counting Pepole / Vehicle Separtion and many other features.
| Video and Audio | AL-NVR5080-8DRAID |
| Access Channel | 80 |
| Incoming Bandwidth | 640Mbps |
| Outgoing Bandwidth | 320Mbps |
| Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Preview Decoding Capability | 16MP(30fps)×3, 12MP(30fps)×4, 8MP(30fps)×6, 6MP(30fps)×8, 5MP(30fps)×9, 4MP(30fps)×12, 3MP(30fps)×16, 1080P(30fps)×24, 720P(30fps)×48, 4CIF(30fps)×80 |
| Playback Decoding Capability | 16MP(30fps)×3, 12MP×4, 8MP(30fps)×6, 6MP(30fps)×8, 5MP(30fps)×9, 4MP(30fps)×12, 3MP(30fps)×16, 1080P(30fps)×16, 720P(30fps)×16 |
| Third-party Camera Access | ONVIF; RTSP |
| HDMI Output | HDMI: 800×600(60Hz), 1024×768(60Hz), 1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768(60Hz), 1440×900(60Hz), 1920×1080(50Hz/60Hz), 2560×1440(30Hz/60Hz), 2560×1600(60Hz), (4K)3840×2160(30Hz/60Hz) |
| VGA Output | VGA: 800×600(60Hz), 1024×768(60Hz), 1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768(60Hz), 1440×900(60Hz), 1920×1080(50Hz/60Hz) |
| Multi-screen Display | Independent Output: HDMI1/VGA1: 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40/64/80 HDMI2/VGA2: 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40/64/80 |
| Audio Input | 1-ch, 3.5mm |
| Audio Output | 1-ch, 3.5mm; BNC |
| Two-Way Audio | 1-ch, 3.5mm, using the audio input |
| Compression | |
| Video | S+265; H.265; S+264; H.264 |
| Audio | G711A; G711U; AAC; ADPCM_DIV4 |
| Stream Type | Video; Video & Audio |
| Network | |
| Network Protocol | ARP; DDNS; DHCP; DNS; Easy DDNS; FTP; HTTP; HTTPS; ICMP; IGMP; IPv4; IPv6; Multicast; NFS; NTP; PPPoE; RTCP; RTP; RTSP; SMB/CIFS; SMTP; SNMP v1; SRTP; SSH; SSL; TLSv1.2, TLSv1.3; TCP/IP; UDP; Unicast; UPnP |
| Mobile Phone Access | Android; iOS; P2P |
| System Compatibility | ONVIF(Profile S/T/G); RTSP; CGI; SDK |
| Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
| Record Playback | |
| Multi-channel Playback | 16 |
| Record Mode | Manual Recording; Alarm Recording; Schedule Recording |
| Storage Method | Local HDD, eSATA |
| Backup | USB storage device, eSATA, Network |
| Playback Function | Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Step/Digital Zoom |
| Dual Stream Record | Yes |
| Alarm | |
| General Alarm | Motion Detection; Mask Alarm; Alarm Input(IPC); Alarm Input(NVR); Manual Alarm |
| Exceptions Alarm | Video Loss; IP Conflict; MAC Conflict; Network Disconnected; No Disk; Illegal Access; Disk group space alert; Disk Full; Disk R/W Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; Hot-spare Exception; Array Exception; Voltage Alarm(IPC); RTC Failure |
| Intelligent Analytics | |
| AI by Camera | Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Loiter; Running; Parking; Heatmap; Video Abnormal; Audio Abnormal; License Plate Recognition; On Duty Detection; Crowd Detection; Parking Guard; Safety Helmet Detection; Electric Bicycle Detection; People Counting; Link to Tracking; Smoke and Fire Detection; Environmental Temperature Measurement; Face Detection; Human Body Temperature Measurement; Smart Motion; Face Recognition; Human/Vehicle Classification |
| VCA Search | Heatmap; Early-warning Search; Behavior Search; License Plate Search; Safety Helmet Search; Thermographic Retrieval; Duty Search; Electric Bicycle Retrieval; Face Search |
| Face Detection | |
| Face Attributes | Gender; Age; Glasses; Face Mask; Body Temp. |
| Face Recognition | |
| Face Picture Library | Up to 300 face libraries Up to 100000 base images |
| Face Picture Comparison | Face Picture Comparison (Cooperate with facial recognition IPC) |
| Storage | |
| HDD Capacity | Up to 24 TB capacity for each HDD |
| Disk Group | 8 Disk Group |
| RAID | JBOD, RAID0, RAID1, RAID5, RAID6, RAID10 |
| External Port | |
| eSATA | 1×eSATA |
| USB | 2×USB2.0; 1×USB3.0 |
| HDMI | 2×HDMI(supports up to 4K resolution output) |
| VGA | 2×VGA |
| Network Interface | 2×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port |
| SATA | 8×SATA interface |
| RS232 | 1×RS232 |
| RS485 | 2×RS485 |
| Alarm I/O | 16-ch, TTL inputs, 3mA, 3.3VDC; 4-ch, relay outputs, 1A, 24VDC |
| General | |
| UI Language | English; Spanish; Korean; Italian; Turkish; Russian; Thai; French; Polish; Dutch; Hebrew; Arabic; Vietnamese; German; Ukrainian; Portuguese; Albanian |
| Power Supply | 100~240V AC |
| Power Consumption | <18W(HDD not included, idling) |
| NetWeight | 8Kg |
| GrossWeight | 10.38Kg |
| Boundary Dimensions | 440(L)460(W)94(H)mm |
| Package Dimensions | 565(L)565(W)220(H)mm |
| Operating Temperature | -10°C~+55°C (+14°F~+131°F) |
| Operating Humidity | 10%~90%RH (non-condensing) |
| Storage Temperature | -20°C~+60°C (-4°F~+140°F) |
| Package Kit | Network Video Recorder; Screw Pack; Mouse; European Standard Power Cord; 2×Ear Plate; 8×SATA Hard Disk Data Cable |
| Certification | CE, FCC,BIS & RoHS |
